Centor Easy II

$995.00 (Save 10%)
$895.50
Ref: CNR EA II 500

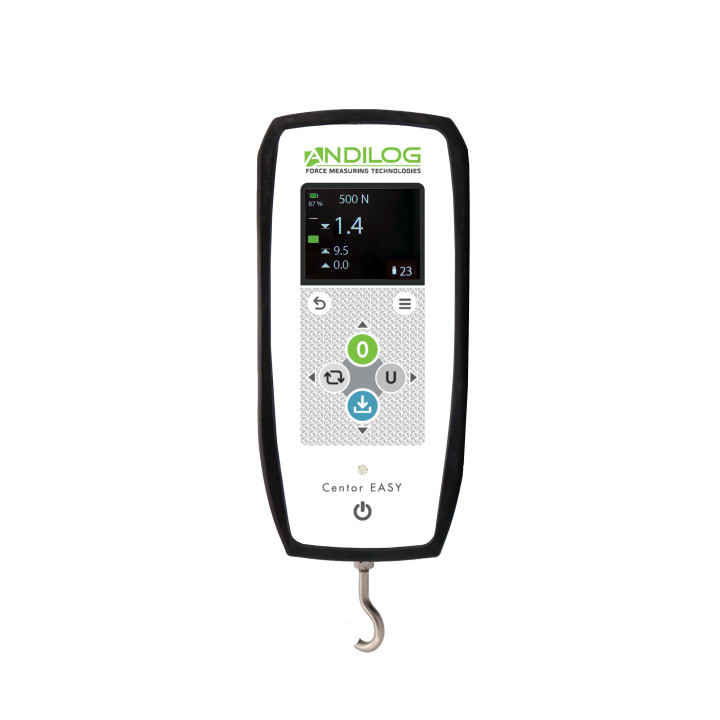

  • Centor Easy II force gauge

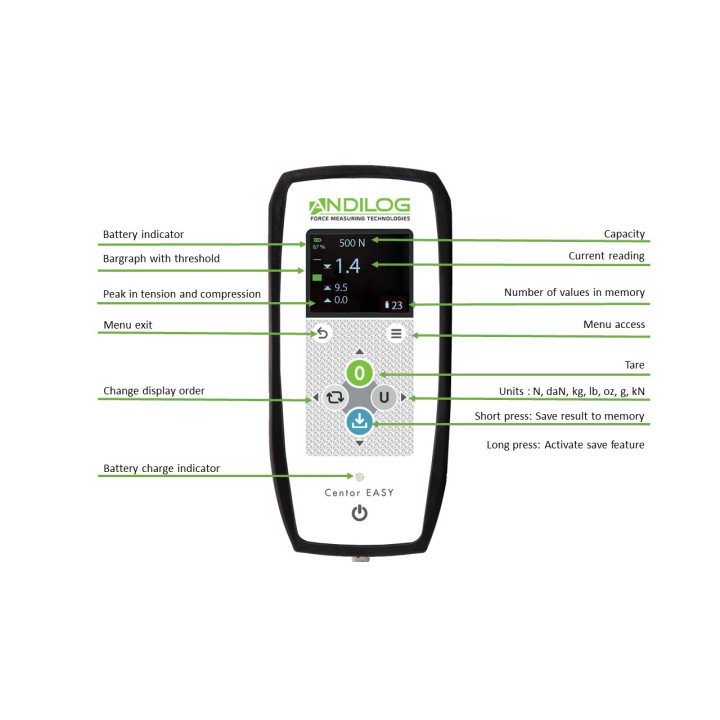

  • Force gauge - Centor Easy II
  • Force gauge - Centor Easy II
  • Display Centor Easy II

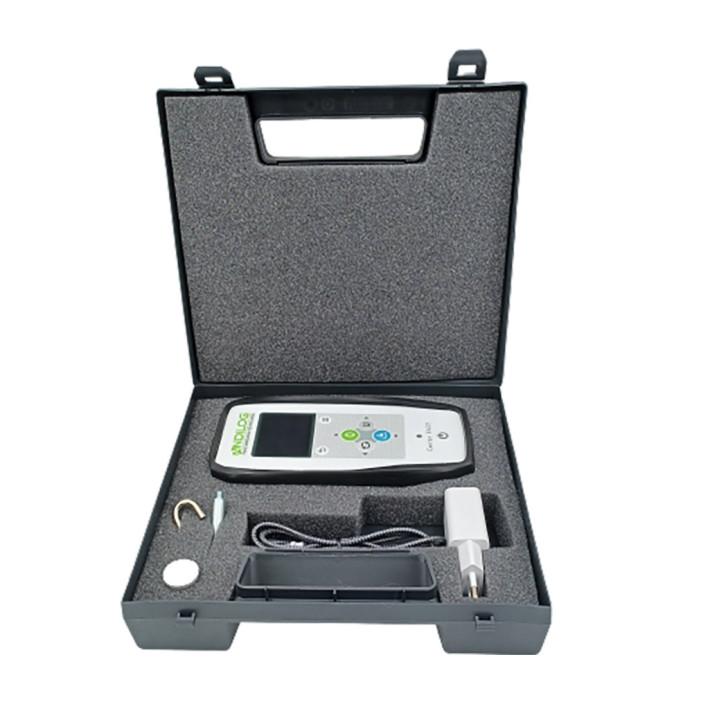

  • Centor Easy II in carrying case

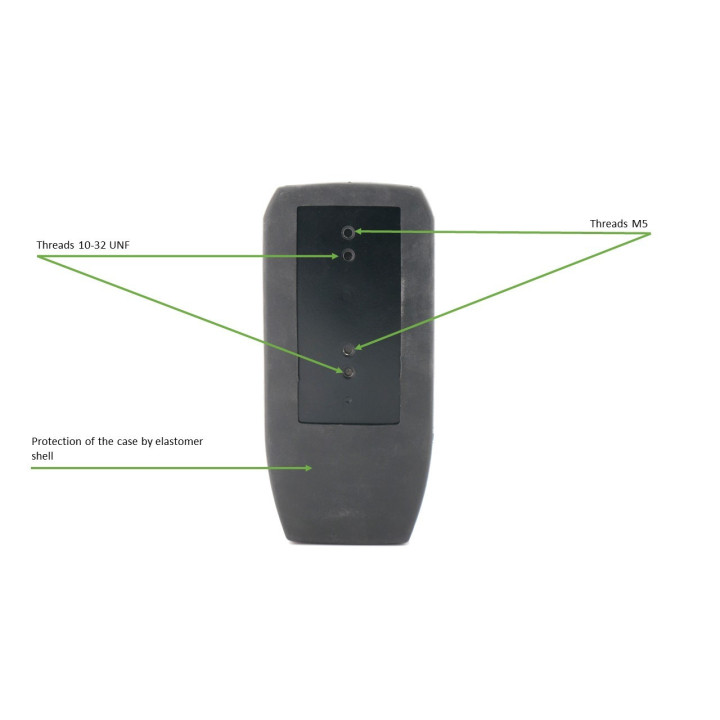

  • Back Centor Easy II

The Centor Easy II combines precision, simplicity, robustness, and versatility. It is a reliable tool, designed to meet the needs of demanding professionals while remaining afordable.

Accuracy and reliability
  • Accuracy ±0.1% Full Scale
  • 2,000 Hz sampling rate for responsive results
  • Ranges from 1 to 200 lbf
Connectivity
  • USB: Retrieve measurements (up to 500 values in memory) or plot force curves on a computer.
  • Inputs/Outputs: 2 inputs and 2 outputs for connecting to a PLC or a pedal
Complete & intuitive
  • Numerous functions: threshold settings with alerts, overload counter, memory, bar graph, etc.
  • Simple interface: Its backlit color screen allows for easy reading of measurements and simple configuration

Why Choose the Centor Easy II?

You would choose the Centor Easy II because it offers:

  • high precision
  • fast sampling
  • versatile measurement modes
  • user-friendly interface, and good connectivity
  • all in a rugged, portable form factor.

It’s especially well-suited to quality control in production environments, R&D testing, and applications where reliable force measurement is critical.

Key features

Centor Easy II
High accuracy
  • Very high measurement precision. Its total measurement error is less than 0.1% of full scale.
  • It has a very fine resolution: 1/10,000 of full scale.
  • The high internal sampling rate (2,000 Hz) helps capture dynamic or fast events very reliably.
Versatility in Measurement
  • It supports both tension and compression testing, making it useful for a wide variety of tests.
  • Available in a broad range of capacities: from 1 lbf up to 200 lbf
  • Multiple unit options: lb, N, kN, kg, oz, daN, etc

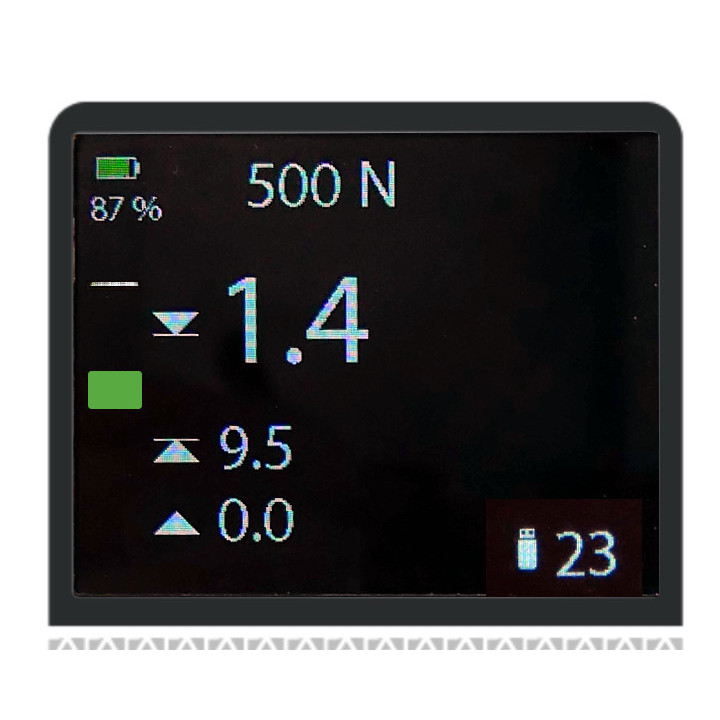

Display Centor Easy II
Connectivity
  • It offers USB communication to transfer memory or to draw curve on a computer (software required)
  • I/O lines: 2 digital inputs + 2 outputs, which is useful for integration with automated systems
User-Friendly Interface
  • Color, back-lit display, making it easy to read measurements even in dim or poorly lit environments.
  • The interface supports threshold (limit) setting: you can define pass/fail criteria with visual alerts
  • Built-in memory: up to 500 measurements can be stored, which is useful for tracking measurement history
Robustess & Durability
  • It is designed for industrial / production environments: built to withstand repeated force applications.
  • Overload protection: can handle up to 200% of full scale without damage.
  • Battery operation: autonomy of ~15 hours, which is quite good for portable use.
  • Auto-off feature for battery conservation (adjustable between 5–15 min, or can be disabled).
Safety and Maintenance
  • Overload protection function: displays a warning if the starting force exceeds 20% of the capacity.
  • Maintenance screen accessible with detailed information (number of overloads, offset, factory parameters, etc.).

Recommended operating conditions:

  • Operating temperature: 33 to 90 °F
  • Storage temperature: –4 to 113°F
  • Relative humidity: 5–95% (non-condensing)
  • Maximum altitude: 1,800 mi
  • Reference
    CNR EA II 500
    • Accuracy
      ±0.1% of Full Scale
    • Sensor sampling rate
      2,000 Hz
    • Autonomy
      15 hours
    • Resolution
      1/10,000 of Full Scale
    • Available units
      lb, N, kN, kg, Oz, daN, g
    • Power supply
      USB-C, 5 V – 1 A min.
    • Communication
      USB
    • Data output rate
      100 Hz
    • Memory
      500 results
  • Brand
yes no
