Centor First II

$575.00
Ref: CNR FT II 500
  • Force gauge - Centor First II
  • Force gauge - Centor First II
  • Force gauge - Centor First II
  • Force gauge - Centor First II

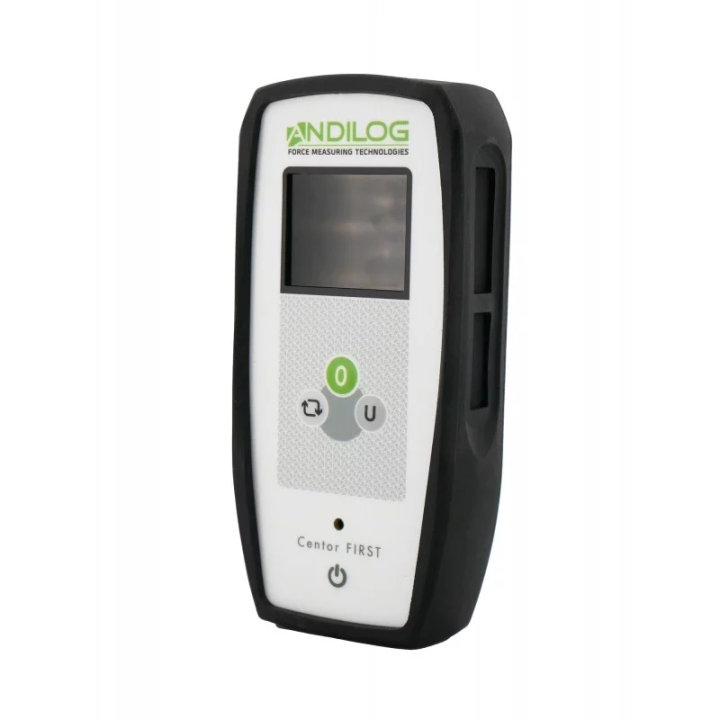

The Centor First II, developed by Andilog Technologies, is an entry-level digital force gauge completely redesigned to deliver simplicity, robustness, and industrial performance.

Simplicity & Ergonomics
  • Backlit TFT color display for clear readings
  • Easy navigation with only 3 keys
  • Graphic bar showing measurement limits
Measurement Versatility
  • Ranges from 2 to 100 lbf
  • Units available: lb, N, kg, daN
  • 1,000 Hz sampling rate for responsive results
Durability & Reliability
  • Metal housing with elastomer protective shell
  • Overload protection system
  • Calibration certificate included

Why Choose the Centor First II?

The Centor First II combines accuracy, durability and ease of use, making it the perfect choice for:

  • Testing and quality control laboratories
  • Industrial companies testing material resistance
  • Operators seeking a reliable, user-friendly force gauge

Key features

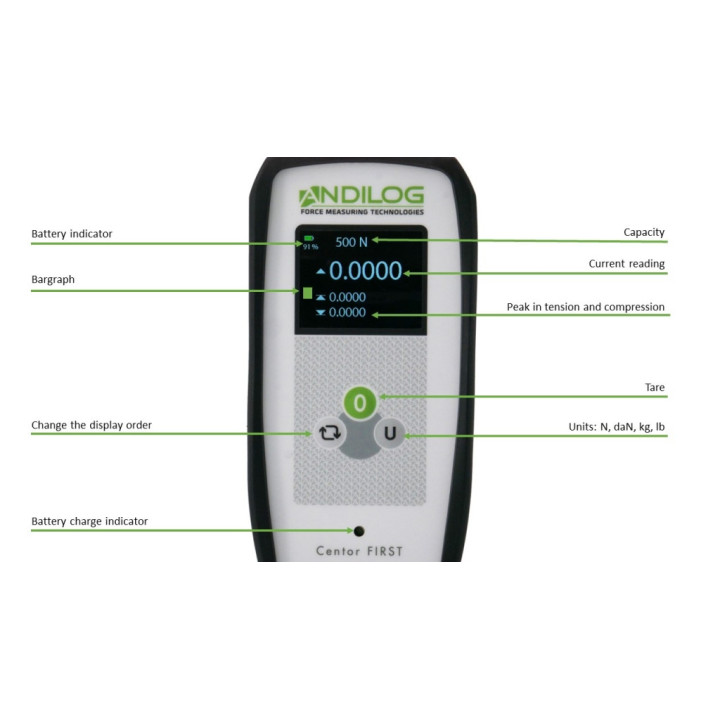

Display and Ergonomics

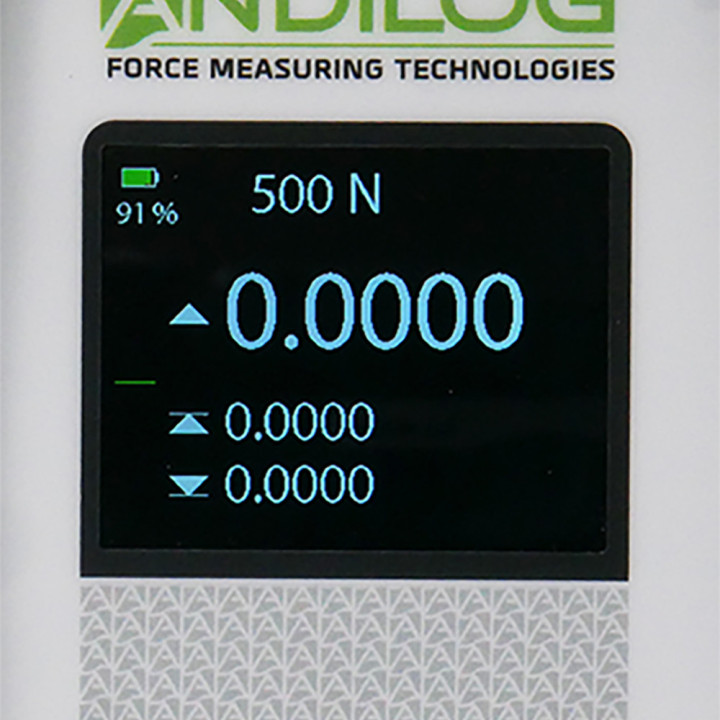

  • Three-line backlit TFT color display with higher resolution than previous versions, ensuring clear readings in both tension and compression.
  • Graphical bar indicator showing the measurement up to the maximum capacity.
  • Three simple keys provide access to essential functions: tare, unit conversion, and display order.
Units and Capacities
  • Measurements displayed in N, kg, daN, or lb, depending on the user’s choice.
  • Available sensors: six measurement ranges, from 10 N to 500 N (2 lb to 100 lb equivalent).
Robust Design and Accessories
  • Metal housing protected by an elastomer cover, ensuring excellent durability.

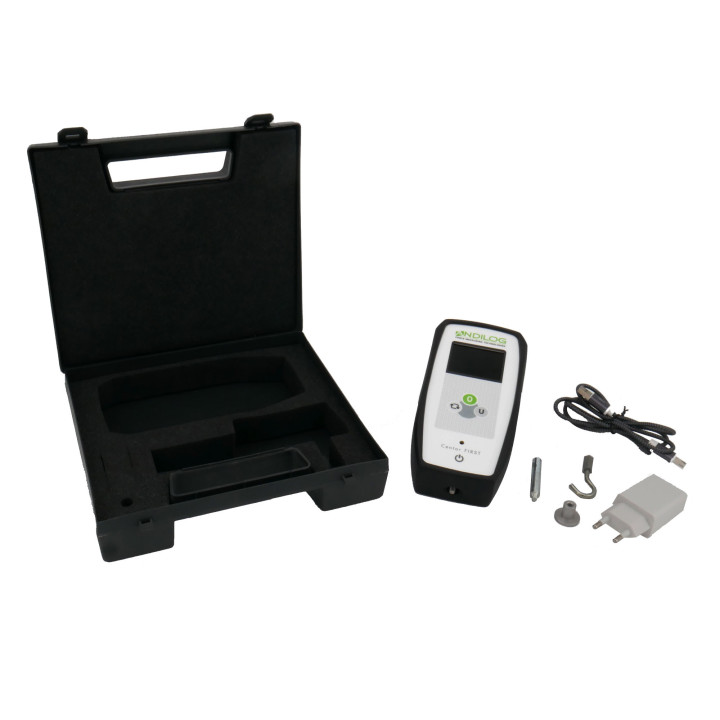

  • Supplied in a carrying case including the force gauge, charger, various accessories, and a calibration certificate with measurement report.
Performance & Autonomy
  • Continuous operation autonomy: 15 hours (according to the manual).
  • Sensor sampling rate: 1,000 Hz, delivering smooth and responsive measurements.
  • Accuracy: ±0.25% of full scale.
Safety and Maintenance
  • Overload protection function: displays a warning if the starting force exceeds 20% of the capacity.
  • Maintenance screen accessible with detailed information (number of overloads, offset, factory parameters, etc.).

Recommended operating conditions:

  • Operating temperature: 33 to 90 °F
  • Storage temperature: –4 to 113°F
  • Relative humidity: 5–95% (non-condensing)
  • Maximum altitude: 1,800 mi
  • Reference
    CNR FT II 500
    • Accuracy
      ±0.25% of Full Scale
    • Sensor sampling rate
      1,000 Hz
    • Autonomy
      15 hours
    • Resolution
      1/5,000 of Full Scale
    • Available units
      lb, N, daN, kg
    • Power supply
      USB-C, 5 V – 1 A min.
  • Brand
yes no
