Wireless torque sensor with chuck

$1,850.00
Ref: WLC TH 12

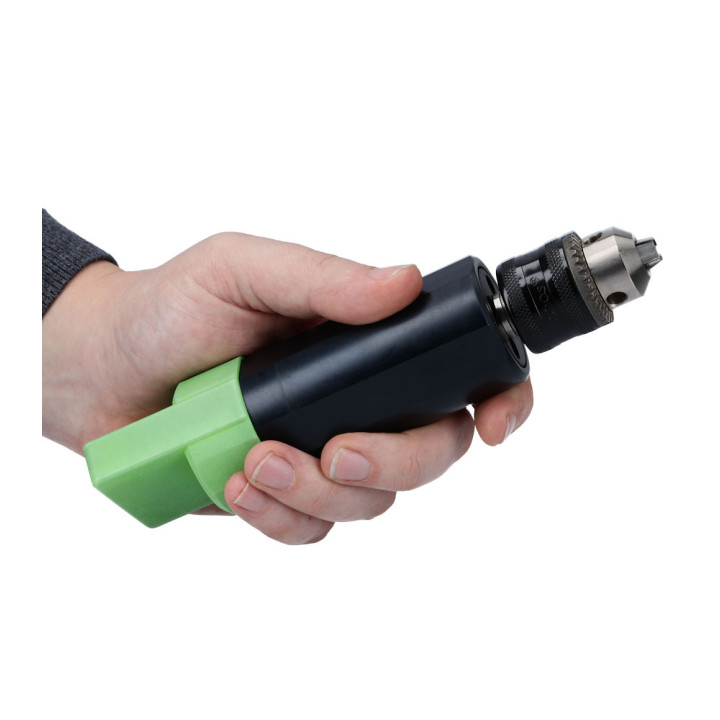

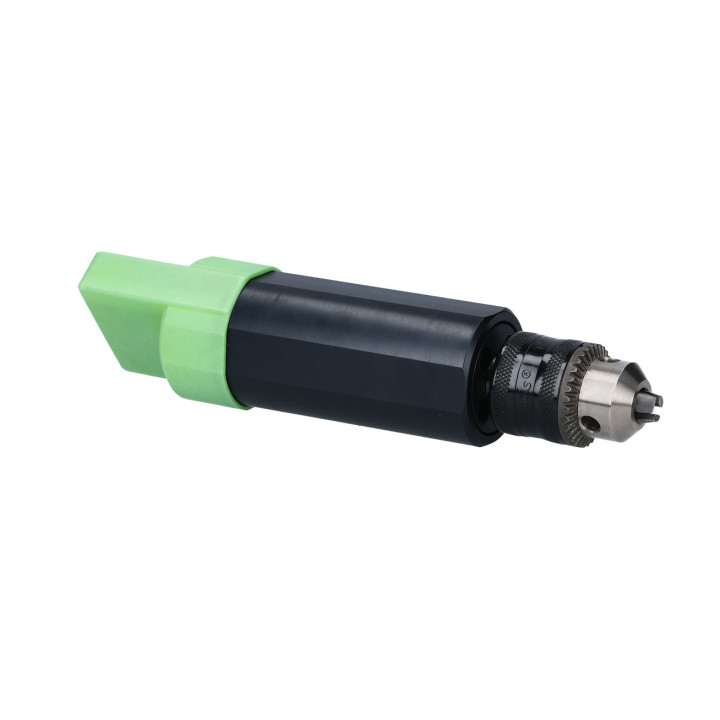

  • WLC TH

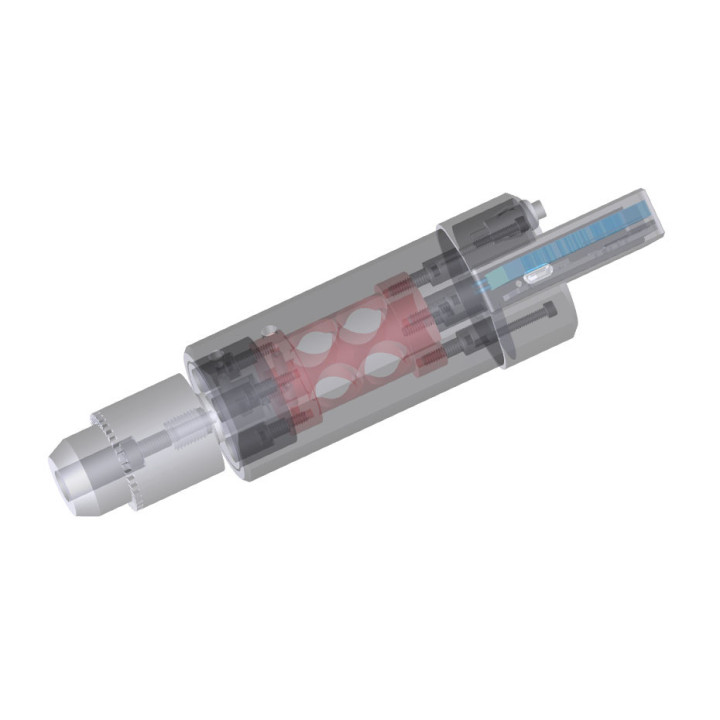

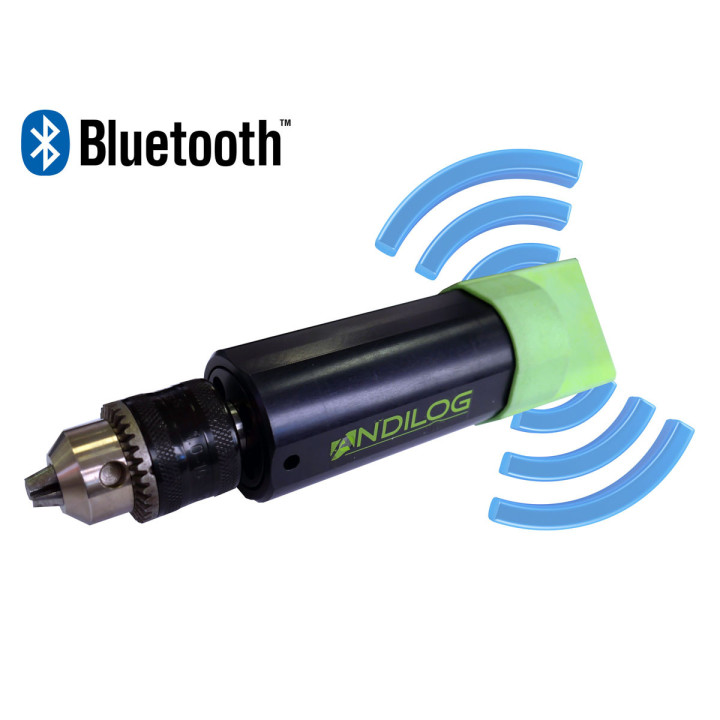

  • Wireless torque sensor WLC TH
  • Wireless torque sensor WLC TH
  • Wireless torque sensor WLC TH
  • Wireless torque sensor WLC TH
  • WLC TH with Caligraph

The WLC TH is the first wireless sensor of the Andilog range. This manual torque sensor permits to measure screwing torques, torsional strength, opening torque without being bothered by a cable or linked to a display. Equipped with Bluetooth technology, the sensor is compatible with all Windows 11 computers or the Centor Touch displays of Andilog.

Accuracy and reliability
  • Accuracy ±0.25% Full Scale
  • 1,000 Hz sampling rate for responsive results
  • Wireless range up to 65 ft

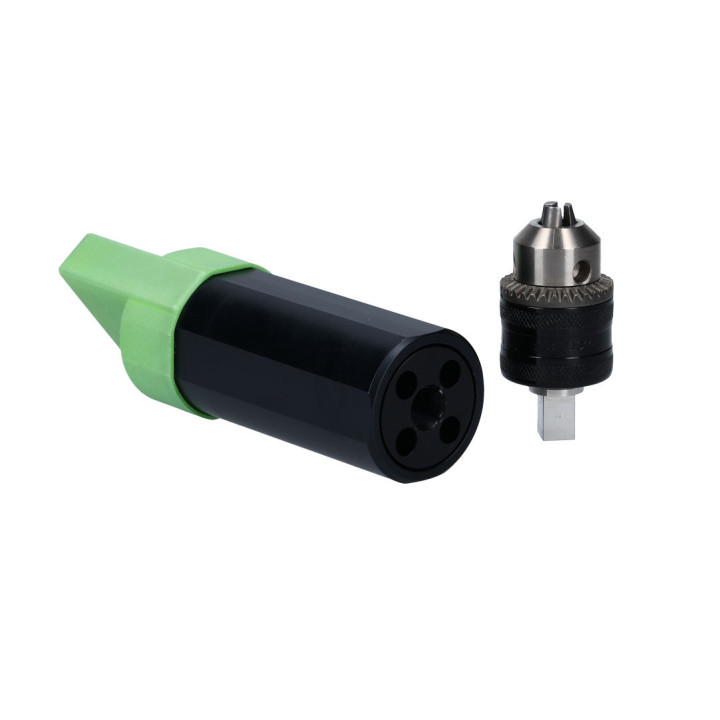

Accessories included
  • Keyed dhuck included
  • Chuck opening from 1/16" to 3/8"
  • USB power supply

Why Choose a wireless torque sensor?

You would choose the WLC TH because it offers:

  • high precision (0.25% FS)
  • fast sampling (1,000Hz)
  • No cable between sensor and display or computer
  • Included keyed chuck.

It’s especially well-suited to quality control in production environments, R&D testing, and applications where reliable force measurement is critical.

Key features

WLC TH
Main features
  • Measurement clockwise and counterclockwise up to 100 lbin
  • Precision of 0,25% Full Scale
  • Sampling rate of 1,000 Hz
  • Operating life: 10 hours of measurement
  • Wireless technology: Bluetooth
  • Signal range: up to 65 ft in open field
  • Charging time: 2 hours
  • Mechanical protection against overloads up to 150 % of the sensor´s capacity
Versatility in Measurement
  • It supports both tension and compression testing, making it useful for a wide variety of tests.
  • Available in a broad range of capacities: from 50 ozin to 100 lbin
  • Multiple unit options: lb, N, kN, kg, oz, daN, etc

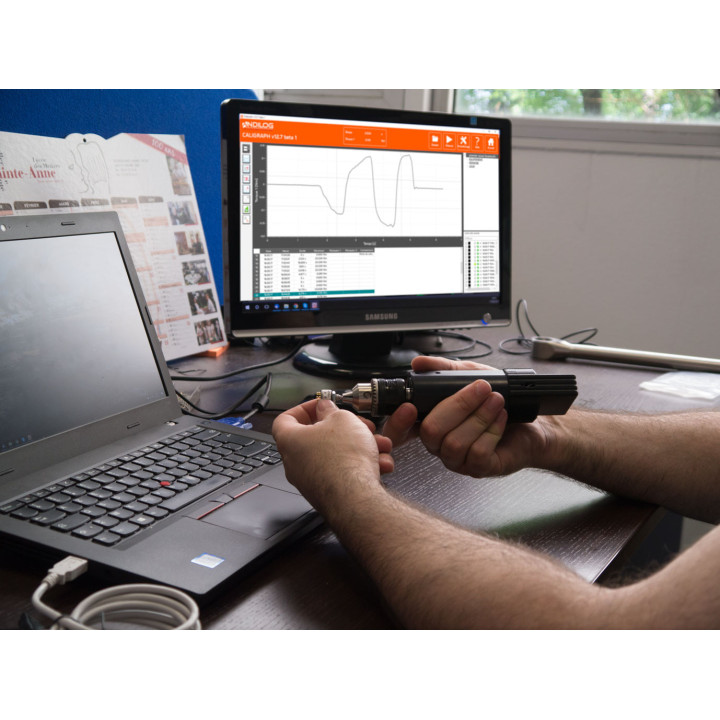

WLC TH with CaligraphI
Compatibility and use

The WLC TH sensors are compatible with:

The Centor Touch range. Thanks to a Bluetooth adapter designed by Andilog, each Centor Touch gauge can read our wireless sensors. If you already have one of this device, it can be updated to active this function. This way you can use all the functions of our displays with external wireless sensors.

Computers equipped with the software Caligraph. Indeed, the WLC TH sensors can be connected directly to a computer equipped with Bluetooth. The visualization of the measuring data is done directly on the software Caligraph and no display or gauge is needed.

Recommended operating conditions:

  • Operating temperature: 33 to 90 °F
  • Storage temperature: –4 to 113°F
  • Relative humidity: 5–95% (non-condensing)
  • Maximum altitude: 1,800 mi
  • Reference
    WLC TH 12
    • Sensor sampling rate
      2,000 Hz
    • Autonomy
      15 hours
    • Resolution
      1/10,000 of Full Scale
    • Available units
      lb, N, kN, kg, Oz, daN, g
    • Power supply
      USB-C, 5 V – 1 A min.
    • Communication
      USB
    • Data output rate
      100 Hz
    • Memory
      500 results
      600 results
  • Brand
yes no
