Centor Easy II TW

• High measurement precision. Its total measurement error is less than 0.5% of full scale.
• It has a very fine resolution: 1/10,000 of full scale.
• The high internal sampling rate (2,000 Hz) helps capture dynamic or fast events very reliably.

• It supports both clockwise and couter-clockwise testing, making it useful for a wide variety of tests.
• Available in a broad range of capacities: from 130 lbin to 1300 lbin
• Multiple unit options: lbin, Nm, kgcm, mNm, lbft

• It offers USB communication to transfer memory or to draw curve on a computer (software required)
• I/O lines: 2 digital inputs + 2 outputs, which is useful for integration with automated systems

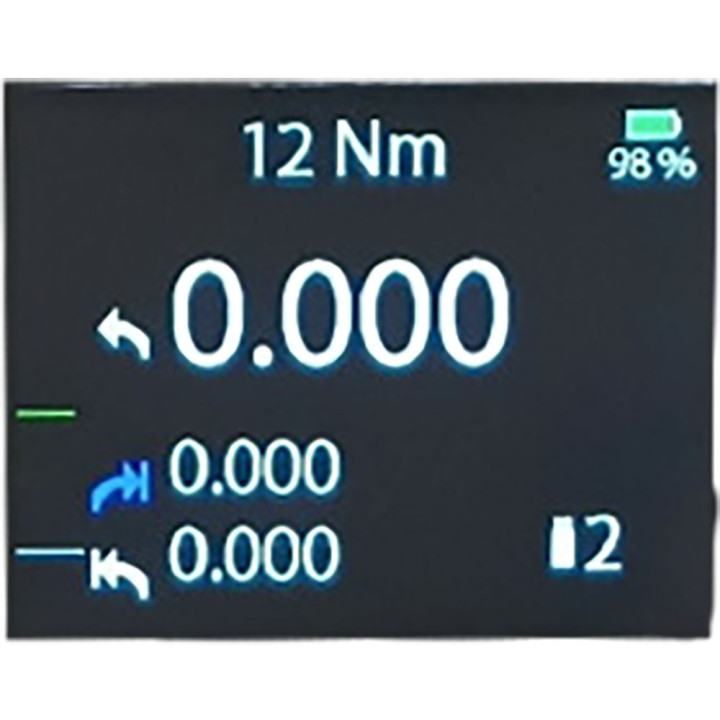

• Color, back-lit display, making it easy to read measurements even in dim or poorly lit environments.
• The interface supports threshold (limit) setting: you can define pass/fail criteria with visual alerts
• Built-in memory: up to 500 measurements can be stored, which is useful for tracking measurement history

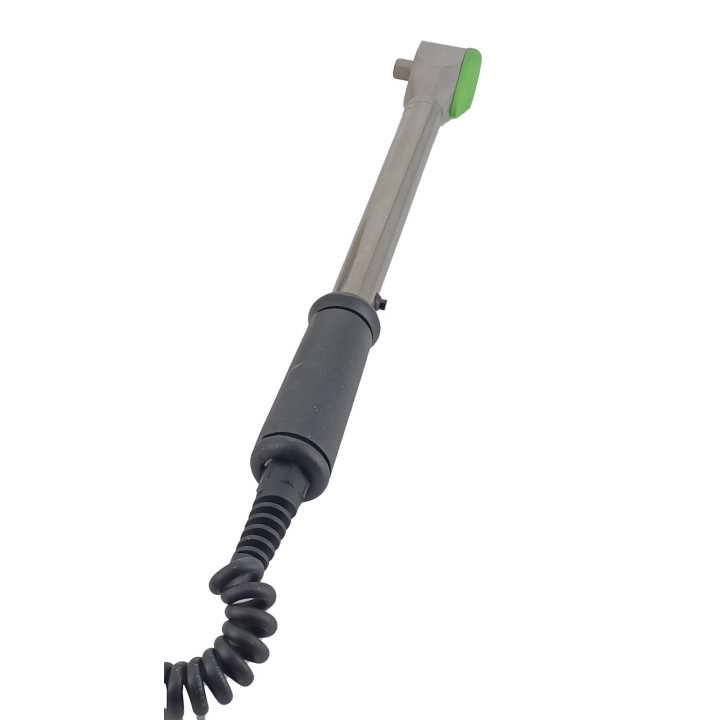

The Centor Easy II TW is equipped with a torque wrench that allows torque measurements to be taken in the axis of rotation. The available capacities are 130 lbin, 500 lbin, 1,300 lbin. This sensor comes with a male square.

You can mount your own tools or socket directly on the torque sensor. The TW sensor has a 3/8" male square drive for 130lbin and 500lbin capacity and a 1/2" square drive for 1,300 lbin capacity.

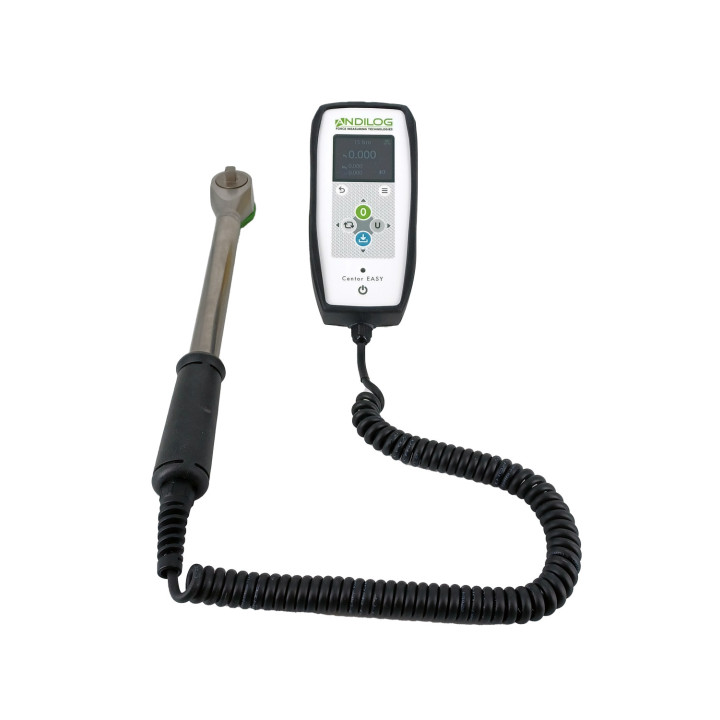

The TW sensor is connected to the Centor Easy II TW torque meter by a spiral cable with a length of 10" when at rest and 40" when fully extended.

• It is designed for industrial / production environments: built to withstand repeated force applications.
• Overload protection: can handle up to 150% of full scale without damage.
• Battery operation: autonomy of ~15 hours, which is quite good for portable use.
• Auto-off feature for battery conservation (adjustable between 5–15 min, or can be disabled).

• Overload protection function: displays a warning if the starting torque exceeds 20% of the capacity.
• Maintenance screen accessible with detailed information (number of overloads, offset, factory parameters, etc.).
